3x MAGNIFIER RED DOT COMBO

3x MAGNIFIER + RED DOT COMBO

TERRA 1X21MM REFLEX RED DOT SIGHT

+

3x RED DOT MAGNIFIER

TERRA 1X21MM REFLEX RED DOT SIGHT

Material: 6061-T6 Aerospace Aluminum

Oxidation: Anodized

On/Off: electronic button，

"▶" Press once to switch on; "◀" Press for 3 seconds to switch off.

Adaptable base type: Picatinny

Base:  Picatinny and Raise mount

Objective Diameter：21mm

Lenses: Fully Multi-coated Glued Lenses

LED color: Red Dot

Dot Size: 3 MOA

Factory Parallax Setting: 50 yards

Allowable Parallax: ±2 MOA

Click value: 1 click = 1 MOA

Elevation and Windage deflection adjustment range:  Total 90 MOA

shake F’ wake: 60 minutes

Automatic shutdown: Yes

Battery model: CR2032 (Included)

Battery life: 50000 hours

Shockproof G Forces: 1500Gs

Waterproof: IP67, water depth 1 meter

Anti-fog: vacuum, nitrogen filling

Operation temperature range: -20℃~+60℃

Storage temperature range ：-20℃~+60℃

weight: 146g

1 MOA per click windage and elevation adjustments

Lightweight and reliable closed emitter

Parallax frees up to 33 yards

3 MOA dot， eight brightness settings with night vision compatibility, and all-metal construction with water resistance.

Utilizing Nitrogen gas, the optic undergoes a dry nitrogen purging process and is sealed to guarantee peak performance in all weather conditions throughout the optic's lifespan.

Windage and elevation adjust at 1 MOA per click through a 45 MOA range each for a total adjustment range of 90 MOA.

The Terra sight features a "Shake F‘ Awake" sensor for motion-activated power, ensuring a long-lasting battery life of up to 50,000 hours. After 3600 seconds of inactivity, it enters low-power mode but reactivates instantly with any weapon drawn.

8 brightness settings (two-night vision) can easily be managed due to the ergonomics of the raised button on the top of the optic.

Brightness levels 1 and 2 of the device are night vision-compatible, levels 3 to 8 cater to low-light and indoor conditions, and the highest settings, 9 and 10, are optimally designed for daylight shooting.

Designed to withstand up to 1500 G's of recoil, ensuring accuracy is not compromised.

The IPX7 waterproof, shockproof, and waterproof design keeps your sight ready for action in inclement weather.

The Terra Construction incorporates the application of 6061-T6 aircraft-grade aluminum, CNC machined one-piece tubes, and Type III Hard Coat Anodize.

ILLUMINATION AT THE READY

The Terra is equipped with a clear 3 MOA dot in either red  and 10 manual illumination settings, Terra stays at the ready longer with a lateral-mounted CR2032 battery and Shake F' Wake auto on/off. Brightness settings 1 and 2 are night vision-compatible with settings 3 to 8 for low-light and indoor applications, leaving settings 9 and 10 ideal for daylight shooting.

PACKAGE CONTENTS

1x Terra Red Dot Sight

1x 21mm Low 1913 picatinny rail mount

1x 21mm High 1913 picatinny rail mount

1x Adjustment tool

1x T10 Tools

1x Lens Cloth

+

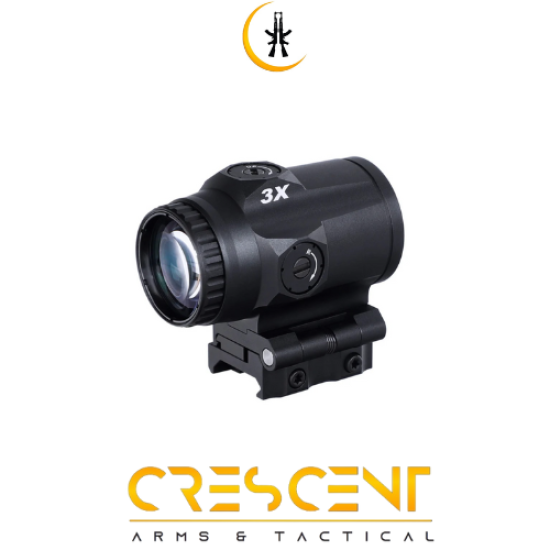

3x RED DOT MAGNIFIER

Micro Size, Adjustable Windage & Elevation.

Crystal Clear, 66mm/2.6" Long Eye Relief.

Fully multicoated clear glass for sharp sight picture, ensure good resolution.

Shockproof 1000Gs Suitable for (20Ga/12Ga, .177/.22/.25, .223/7.62/.308/.300win/.338).

IPX67 Waterproof: It has been tested to work for at least 30 minutes while under 15cm to 1m of water.

Build-in Flip-to-Side Picatinny QD Mount, 36mm 1.4" From Bottom to Sight Center.

Full Metal, with Riser Section.

Limited Lifetime Warranty from the date of purchase on parts and workmanship to the original purchaser.

Type: Red Dot Magnifier

Magnification: 3X

Objective Lens Dia: 18mm

Lens Material: Multi-Coated Glass

Eye Relief: 75.1mm

Exit Pupil: 6mm

Field of fiew feet/100yards: 38.7 feet

Housing Material: CNC Aluminum Housing, 6061

Housing Surface: Anodized

Housing Color: Matt Black

Size (LxWxH): 69.2x41.2x64.3mm (w/ mount)

Weight: 226g (w/ mount)

Waterproof: 1M, 30min

Shockproof: 1000Gs

Fogproof: Yes

Operating Temp.: -20℃ ~ 40℃ (-4℉ ~ 104℉)

Storage Temp.: -30℃ ~ 50℃ (-22℉ ~ 122℉)

Mounting type: Flip to Side Mount
